- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 120
- Place of Origin: Shandong,China
- Brand Name: Fudeng
- Model Number: FD-SINOTRUK HOWO TRACTOR TRUCK
- Weight: 10000.000 kg
Quick Details
| Use: | Truck Trailer | Type: | Semi-Trailer | Material: | Steel |
| Certification: | CE CCC ISO | Size: | Buyer's Request | OEM No.: | Tractors for sale in south africa |
| Max Payload: | 45 - 100 Tons | Place of Origin: | Shandong, China (Mainland) | Brand Name: | Shandong Fudeng |
| Model Number: | FD-BBTT4 | Horsepower: | 336 - 420hp | Drive Wheel: | 6x4 |
| Emission Standard: | Euro 2 | Driving Type: | Right Hand Driving | Tire: | 12R22.5 |
| Wheel Number: | 10 | Engine Capacity: | > 8L | Color: | Customer's Requirement |
| Condition: | New | Keywords: | Tractors for sale in south africa |
Packaging & Delivery
| Packaging Details: | Nude packing. Bulk cargo or RORO shipping. Fudeng is China's most professional supplier of semi-trailer, the main products tank semi-trailer. Low bed semi-trailer,Container trailer. semi-trailer truck trailer.Pink tank semi trailer. Split gooseneck trailer, semi-trailer. Customer satisfaction is the goal we have been pursuing. |
| Delivery Detail: | Shipped in 20 days after payment |
- Size: 120
- Place of Origin: Shandong,China
- Brand Name: Fudeng
- Model Number: FD-SINOTRUK HOWO TRACTOR TRUCK
- Weight: 10000.000 kg

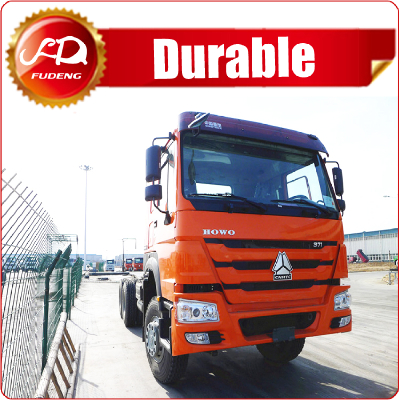

SINOTRUK HOWO 4x2 tractor/ trailer truck head
If you buy tractor truck from our company,the semi trailer will be have a discount about 20%.
Welcome to enquiry!!!Please contact me!
Allsion
Phone(whatsapp): 86 185 6021 7989
Email:allision @ fudengtrailer.com
Skype:fudengtrailer4
Fax: 86 531 6865 9682

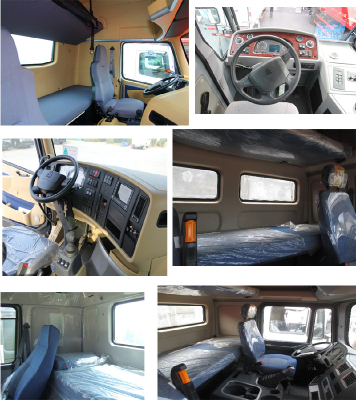

Cabin:
HW70 cab without berth or bed
HW76 with one berth or low roof cabin
HW79 with two berth or bed
Vehicle model | ZZ4257S3247 | |
Cab | Model | HW76 |
Type | Standard cab, one berth, up/down and front/back adjustable steering wheel, VDO instrumentand control module, double-locking safety belt, exterior sun visor. | |
Engine | Model | WD615.47 |
Rated power | 273 kw / 2200rpm | |
Maximum torque | 1500 Nm./1100-1600rpm | |
Displacement | 9.726L | |
Type | Six cylinders inline, supercharged intercooler, WD615Engine two valve, supercharge postposition, D12Engine four valve, central superchager | |
Clutch | Φ430 diaphragm spring clutch,Hydraulic control air assisted. Standard 430A | |
Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction. Standard HW19710. | |
Front Axle | HF9 drum-type, rated load of 9t | |
Drive Axle | HC16 double reduction, speed ratio:4.8, 5.73 | |
Suspension | Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer, rear suspension is disconnected type with transverse stabilizer | |
Steering system | ZF8118 | |
Braking system | Service brake; dual-circuit air pressure brake; parking brake;spring storage energy without air; auxiliary brake; engine exhaust braking | |
Electric system | Voltage: 24V; generator:1540W; starter:24V,7.5kw; battery: 12V/165Ah, 2 pieces | |
Tyre | 12.00R20 | |
Tank volume | 400L | |
Kerb weight | 9210kg | |
Gross Mss | 25000kg | |
Authorized maximum towed mass | 39600kg | |
Permissible fifth wheel load | 15660kg | |
External dimensions ( L x W x H) | 6800x2496x3563mm | |
Wheelbase | 3200 1350 | |
Front/rear overhang | 1500/725mm | |
Wheel Track(front/rear) | 2022/1850mm | |
Minimum ground clearance | 314 mm | |
Approach/departure angle | 16/70° | |
Maximum speed | 102km/h | |
Max. hillholding ability | 20% | |
Minimum turning diameter | 15m | |
Fifth wheel joint face ground clearance(unload) | 1390m | |
Front/rear turning radius | 2600/2100mm | |
Traction pin specification | 90# or 50# | |
<1>Our company aims to study, produce, and import-export the special trailers, being famous in domestic and foreign countries. We provide both high quality and lowprice trailers for the customers around the world.
<2>Experienced and technological team customize the best productions for customers. Our trailers are hot sale in the international market, such as Africa market (Tanzania, Sultan, Angola, Algeria and so on), Mid-east, South- Asia (Burma, Vietnamese, Thailand…) and South America market.
