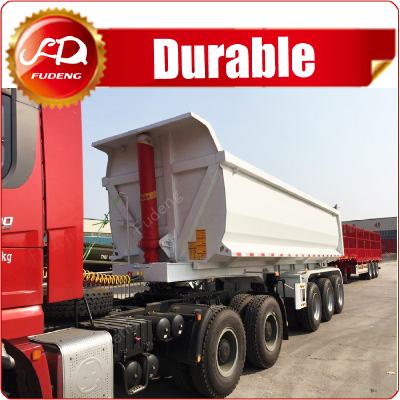

Rear Tipper Widely Used U shape tipping trailer For Sale/Tri-Axles End Dump Semi Truck Trailer

Rear Tipper Widely Used U shape tipping trailer For Sale/Tri-Axles End Dump Semi Truck Trailer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1200 Sets per Month
  • Port: Shanghai,Tianjin,Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-11-24
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  170
  • Place of Origin:  Shandong,China
  • Brand Name:  Fudeng
  • Model Number:  FD-Tipper semi trailer
  • Weight: 8000.000 kg

Rear Tipper Widely Used U Haul Car Trailers Tri-Axles End Dump Semi Truck Trailer For Construction Material


Functions



1. This series dump trailer,dumper trailer,dumping trailer ,tipping trailer,tipper trailer,tip semi trailers, are mainly used in heavy duty transportation for bulk cargo transportin such as sand,grain,stone or fruit.


2. The capacity is for 10tons-200tons , we can manufacture it according to your needs.


3. The axles can be FUWA / BPW with different tonnages by your need with price differences.


4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc .


5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.


6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs



If you can place an order now,we wwill present 500 dollars quick-wear spare parts for free!






  • Size:  170
  • Place of Origin:  Shandong,China
  • Brand Name:  Fudeng
  • Model Number:  FD-Tipper semi trailer
  • Weight: 8000.000 kg

Specifications

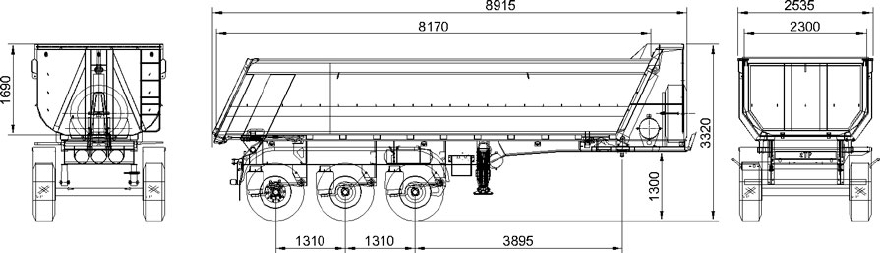

Dimension

7.5-12m×2.5×4m (Outside)

Payload

40T-100T

Tare weight

About 7.5T-15T

Lifting system

Full set of Hyva hydraulic system/Chinese brand

Chassis

Frame

Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material

Frame Beam

Upper and lower plate is20mm,middle is10mm.height is 500 mm

Frame Floor

The Thickness is 3-8 mm flat bed

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T)or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type/air suspension

Leaf Spring

90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.

Rim

8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional

Tire

11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional

ABS

Optional

Accessories

One standard tool box

Voltage

24V

Packing and shipping

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms

By Bulk Cargo/RORO
