- Size: 120
- Place of Origin: Shandong
- Brand Name: Fudeng
- Model Number: FD-STST1
- Weight: 10000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :

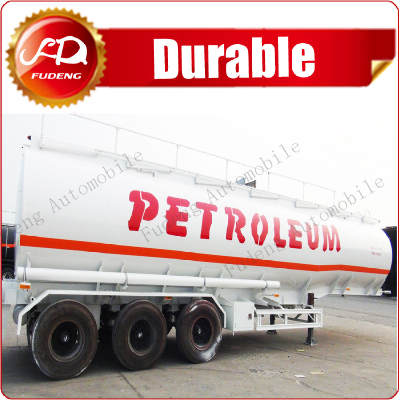

This Chemical liquid tank semi trailer suitable to transport: Oil, Fuels, Water, Chemical liquid, liquid food and other liquid goods.
Our company aims to study, produce, and import& export the special trailers, being famous in domestic and foreign countries. We provide both high quality and low price trailers for the customers around the world.
| Use: | Truck Trailer | Type: | Semi-Trailer | Material: | Steel |
| Certification: | CCC CE DOT ISO9001 | Size: | Buyer's Request | OEM No.: | Chemical liquid tank semi trailer |
| Max Payload: | 60T | Place of Origin: | Shandong, China (Mainland) | Brand Name: | Shandong Fudeng |
| Model Number: | FD-FOTT24 | AXle No.&Brand: | 2-4 Axle FUWA/BPW/Chinese Brand | Tire: | 10.00R20/ 11.00R20/ 12R22.5 |
| Suspension: | Mechanical | Color: | Custom's Requirement | King pin: | 2"(50mm)or3.5"(90mm) JOST |
| Brake System: | ABS Optional | Usage: | Transport oil | Landing Gear: | JOST |
| Condition: | New | Keywords: | Chemical liquid tank semi trailer |
- Size: 120
- Place of Origin: Shandong
- Brand Name: Fudeng
- Model Number: FD-STST1
- Weight: 10000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
Overall length |
11900*2500*3850mm |
Type | Steel self-support fuel tanker with 6 compartment，with the necessary baffles |
Capacity | 42000L |
Material | Carbon steel Q345，tank：4.5mm thickness， |
Dished end | 5.5mm thickness，baffle：4.5mm thickness |
Manhole | 6 manhole covers with filling opening and auto-pressure relief valve to control pressure built by temperature variation. |
Discharge valve | Every compartment will be fixed one unit aluminum alloy foot valve and one unit API discharge valve with API Dust Cap. |
Access ladder | One(1) access ladder at front of tank. |
Walkway | For easy access to manholes covers(material is carbon steel) |
| BPW ECO 12 ton capacity，three unit，Hub odometer for kilometers on one unit |
Suspensions | Air bag suspensions， front axle liftable |
Tire and rim | Super single Double Coin tire 385/65R22.5 on steel rim |
Break system | Double line air breaks with spring loaded parking brake，air parking brake，ABS installed.(Mudguard for one steel unit) |
Electrical light | Electrical equipment 24 Volt，in accordance with the road traffic regulations electric connection type SAE 7 poles mounted on the front bearer. |
| Bottom and top loading with overfill sensors（British Standard）to prevent overfilling during the bottom loading operation |
Accessories： | Side protection bumper 8 liters fire extinguisher
|
Our company(Shandong Fudeng Truck Co.Ltd) is located in Shandong province of China.Our company has strong staff team and outstanding technology.With good quality, reasonable prices and stylish designs. our products have become more and more popular.
