- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 140
- Place of Origin: Shandong
- Brand Name: Fudeng
- Model Number: FD-BATST1
- Weight: 120000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
Accessories :
· 1 unit spare tyre
· Spare tyre frame
· Toolbox
· Water tank
· 4 units mudguards made of plastic
· Fire extinguisher (6kg) with its box
Advantage

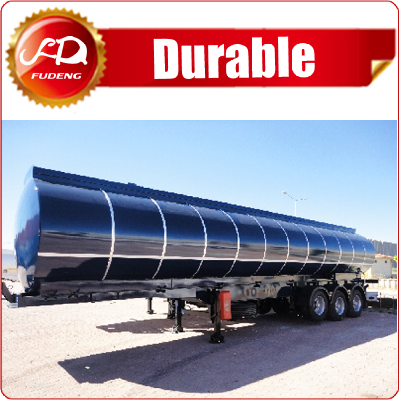

1. Product: Asphalt Tank Semi Trailer
2. Be designed according to your requirements
3. CCC CE ISO9001 etc. agreement
4. 3 year quality guarantee term
5. We accept 100% inspection, welcome to our factory at any time
6. Fast delivery time
- Size: 140
- Place of Origin: Shandong
- Brand Name: Fudeng
- Model Number: FD-BATST1
- Weight: 120000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
Main Dimensions | |
Tank Body | |
Shape | Round or Square |
Dimension | 12000mm*2490mm*3990mm or customized |
Volume(m3) | 25m³- 70 m³ |
Tare weight | About 6000KGS-12000KGS |
Tanker Body thickness | 5mm or 6mm/Q235 carbon steel/Q345B/aluminum/stainless steel |
End Plate thickness | 5mm or 6mm/Q235 carbon steel/Q345B/aluminum/stainless steel |
Manhole Cover | Carbon steel Aluminum alloy API manhole cover, 500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Compartments | Optional |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type/air suspension |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
ABS | Optional |
Accessories | One standard tool box |
Voltage | 24V |
Packing and shipping | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms | By Bulk Cargo/RORO/40HQ Containers |
We are a company specialized in truck trailer research, development, manufacture, and import and export, being well-known in domestic and foreign countries. We provide both high quality and low price trailers for the customers around the world.
1. For any reliability & safety and economic related questions, we all have mature solutions at any time.
2. Think about customer’s demands considerately, and welcome different cooperated mode.
