- Size: 100
- Place of Origin: Shandong
- Brand Name: Fudeng
- Model Number: FD-CNG1
- Weight: 9000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
Quick Details
| Use: | Truck Trailer | Type: | Semi-Trailer | Material: | Steel |
| Certification: | SE,CE,DOT,ISO9001 | Size: | Buyer's Request | OEM No.: | GNG Tube Semi Trailer |
| Max Payload: | 60T | Place of Origin: | Shandong, China (Mainland) | Brand Name: | Shandong Fudeng |
| Model Number: | FD-CNG1 | AXle No.&Brand: | 3 Axle FUWA/BPW/Chinese Brand | Tire: | 11.00r20 12r22.5 315 385 |
| Brake System: | ABS Optional | King pin: | 2"(50mm)or3.5"(90mm) JOST | Condition: | New Co2 tank semi trailer |
| Usage: | Transport CNG,GAS | Tank Material: | Iron,aluminum,Stainless steel,carbon steel | Storage: | GNG Tube Semi Trailer |
| Color: | Custom's Requirement | Keywords: | GNG Tube Semi Trailer |
Packaging & Delivery
| Packaging Details: | Nude packing. Bulk cargo or RORO shipping. semi-trailer. Low bed semi trailer,Container trailer. semi-trailer truck trailer.Pink tank semi trailer. Split gooseneck trailer, semi-trailer. Customer satisfaction is the goal we have been pursuing. |
| Delivery Detail: | Shipped in 15 days after payment |
- Size: 100
- Place of Origin: Shandong
- Brand Name: Fudeng
- Model Number: FD-CNG1
- Weight: 9000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

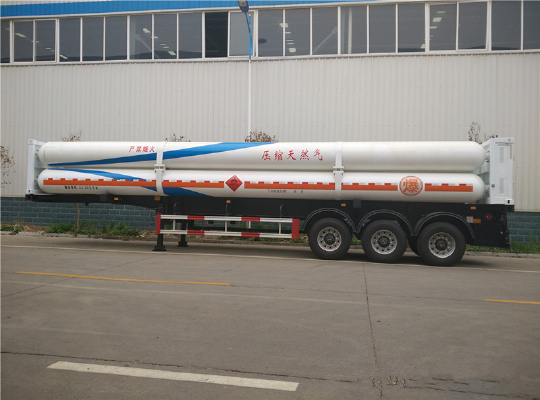

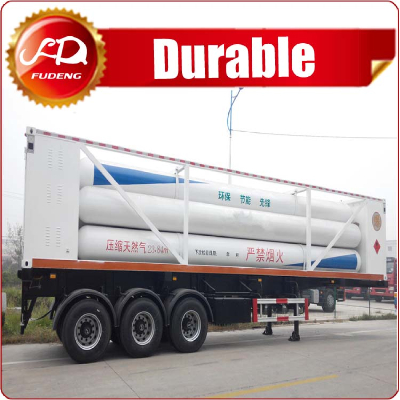

CNG TUBE CASCADE SKID CONTAINER | |||||||
Model | SKW9401GGY | ||||||
Name | Compressed Nature Gas Long Tube Transportation Semi Trailer | ||||||
Brand | SHENGRUN | ||||||
Announcement | 267 Batch | ||||||
Volume | 25.02m³ | ||||||
Dimension | 13000mm*2480mm*3140mm | ||||||
Rated Load | 4340kg | ||||||
Tare Weight | 35660kg | ||||||
Total Weight | 40000kg | ||||||
Vehicle Identification Number | LA99FRG3×××SKW××× | ||||||
Usage | The cargo's carrying part is 6 tubes tank-style designed, is suitable for the transportation of compressed natural gas. | ||||||
Remarks | Total volume of tank: 25.02m³, Transport medium: CNG, Medium density: 170kg/m³, Tank is composed of 6 tubes. | ||||||
UPPER CONSTRUCTION | |||||||
Standard:ISO11120-19999 Q/1500ZTL 002-2012 | |||||||
Tube Skid Container | Items | Parameter | Cylinder | Items | Parameter | ||
Type | GSJ08-2210-CNG-25 | Working Pressure | 25MPa | ||||
Net Weight(without Chassis) | 26762Kg | ||||||
CNG Loading Weight | 4010Kg | Working Temperature | -50~65°C | ||||
Rated Weight | 30772Kg | Main material | 4130X | ||||
Risk Class | 2.1 | Cylinder Quantity | 6 | ||||
UN code | 1049 | ||||||
Loading Medium | CNG | Total Cylinder Volume | 25.02m3 | ||||
Leakage test pressure | 25MPa | Hydrostatic test pressure | 37.5MPa | ||||
Inflating Volume | 6300Nm3(20℃) | dimension(Diameter x Thickness x Length) | Φ711x17.4x12190 | ||||
Heat Treatment | Quenching Tempering | Design Temperature | 65℃ | ||||
outside dimension | 12192x2438x1400(mm) | Working Temperature | -40~60°C | ||||
Leakage test pressure | 25MPa | ||||||
Medium Property | Explosive | ||||||
Bursting Disc | Bursting Pressure | 37.5MPa | material | 4130X | |||
Bursting Disc Device Discharging Diameter | ≥ φ20 | material | 4130X | ||||
Othe types of semi trailers we can produce:
1.Low bed semi-trailer : transport heavy duty machinery
2.Fuel tank semi-trailer : transport oil,gasoline,diesel,fuel,etc.
3.Flatbed container semi-trailer : carry 1x40ft/2x20ft/1x20ft container
4.Van type semi-trailer
5.Bulk powder semi-trailer
6.Dump trailer
7.Side wall semi-trailer
